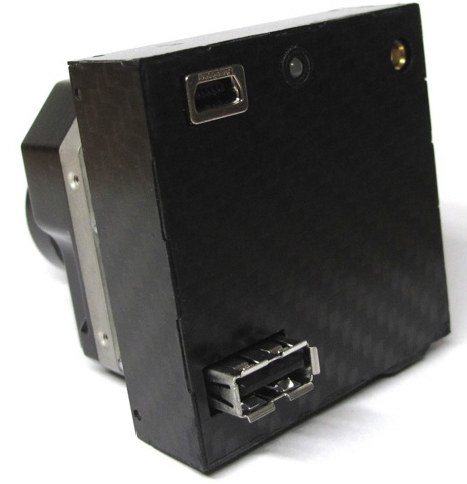

FLIR Tau 2 640 + TEAX ThermalCapture

  • Tau 2 640 + ThermalCapture
  • Tau 2 640 + ThermalCapture

Size: 1.75 in x 1.75 in x 1.18 in (4.44 cm x 4.44 cm x 3 cm)

Weight: 132 g

Spectral band: 7.5 µm -- 13.5 µm

Thermal Imager: Uncooled VOx Microbolometer

Image Resolution: 640 pixels x 512 pixels

Operating Temperature Range: -40°F to +176°F (-40°C to +80°C)

Full Frame Rate: 30Hz (NTSC), 25 Hz (PAL)

Measurement Accuracy: +/-5ºC or 5% of reading

Power: External 4.0 VDC -- 6.0 VDC

sUAS Integration: Custom payload

FLIR Tau® 2 640 is a thermal imaging camera offers an unmatched set of features for demanding applications through sUAS. Tau® 2 capabilities include radiometry, increased sensitivity (<30 mK), 640/60 Hz frame rates, and powerful image processing modes that dramatically improve detail and contrast.

ThermalCapture from TEAX Technology allows storing raw thermal video data on a standard USB stick directly onboard the sUAS. With this hardware, thermal video can simply be stored onboard the sUAS and subsequently viewed and post-processed.

$ 8,000 USD
