Headwall Nano-Hyperspec®

  • Nano-Hyperspec
  • Nano-Hyperspec
Core Specifications

Size: 3 in x 3 in x 4.7 in (7.62 cm x 7.62 cm x 11.94 cm)

Weight: 680 g

Wavelength Range: 400 nm – 1,000 nm

Spatial Bands: 640

Spectral Bands: 270

Lens: compact f/1.8 4.8 mm

Full field-of-view (FOV): 50.684°

Camera technology: CMOS

Full Frame Rate: 200 fps -- 480 fps

Power: External 9 VDC -- 24 VDC

Internal storage capacity: 480 GB (130 min at 100 fps)

sUAS Integration: Customised 2-axis gimbal system

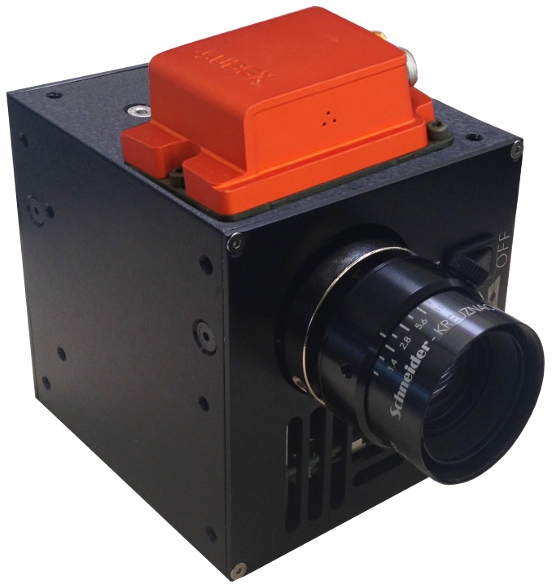

The Nano-Hyperspec® is an integrated hyperspectral sensor that operates in the Visible and Near Infrared (VNIR) (400 nm –1,000 nm) spectral range. Furthermore, the sensor also has the capacity of on-board data collection and storage up to 480 GB and includes GPS/IMU functionality. This allows the payload bay of the sUAV to be optimized for other needs such as video or thermal imaging. Weight and space is saved, making for a more efficient airborne solution.

$ 70,000 USD
