Size: 150x165x110mm
Weight: 780 grams
Spectral bands: RGB and NIR
Imaging Sensor: CMOS APS-C
Image Resolution: 6000 x 4000 pixels
Focal Length: Variable
Power: Battery or external (our solution modified external power to accept aircraft voltage)
sUAS Integration: Custom

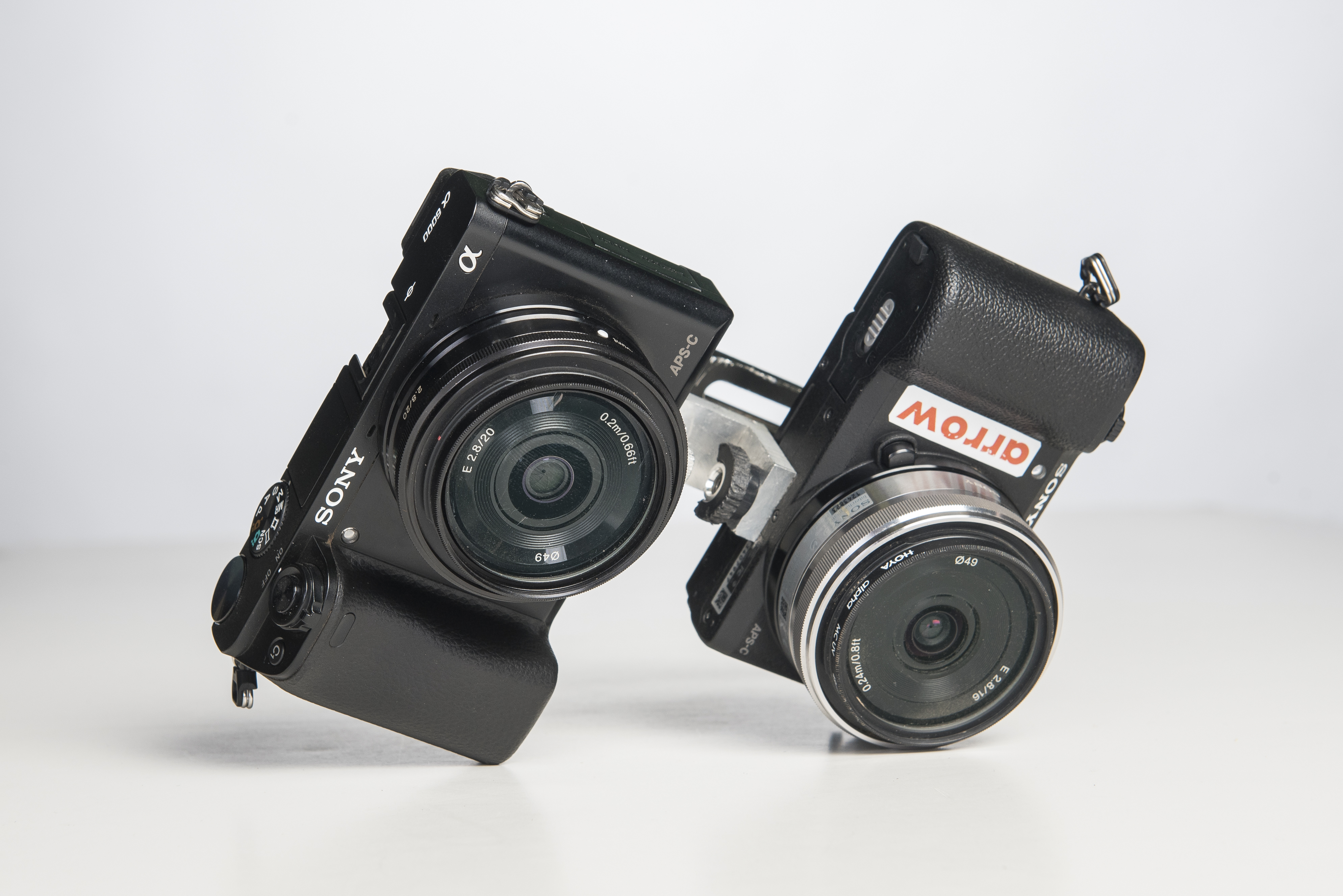

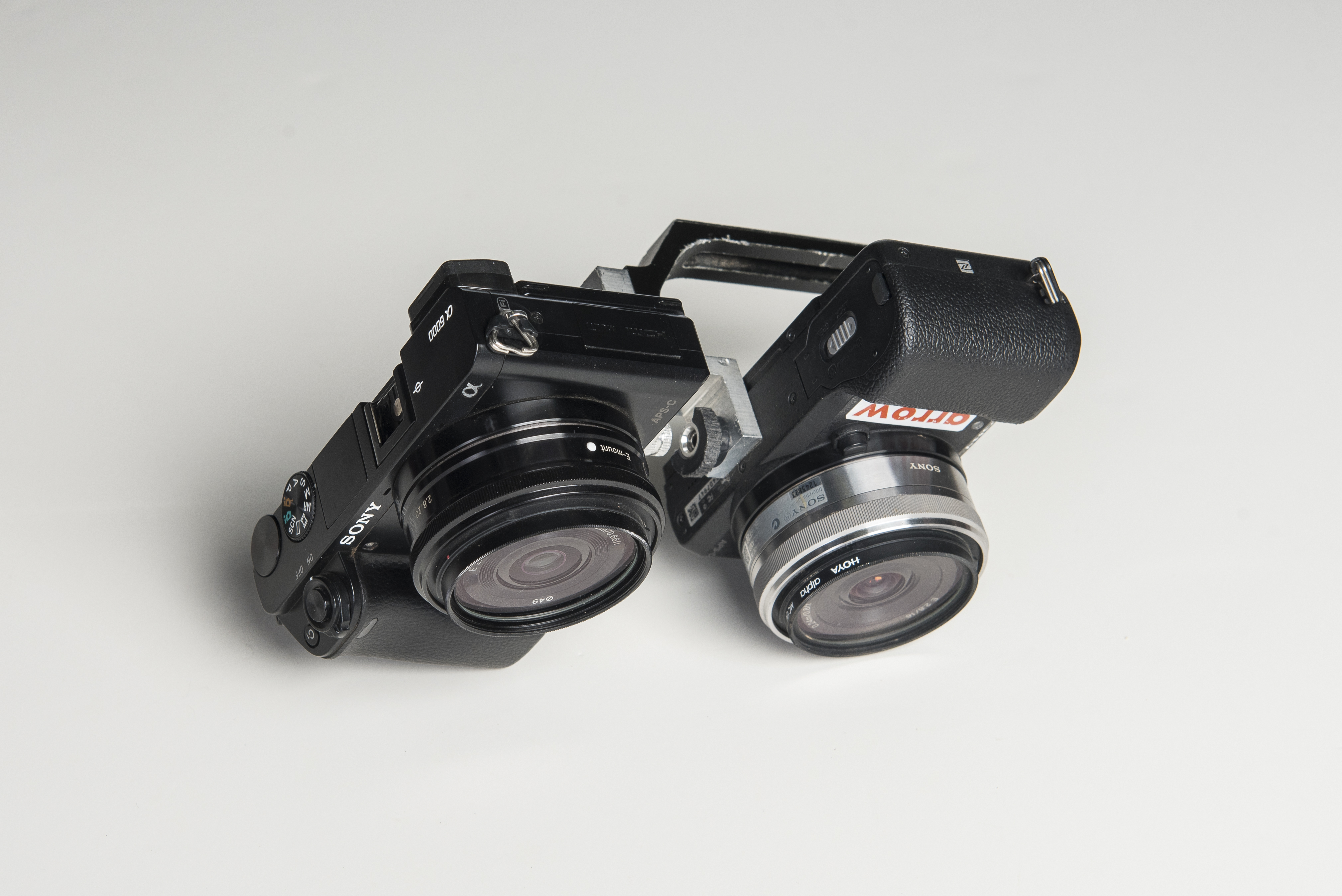

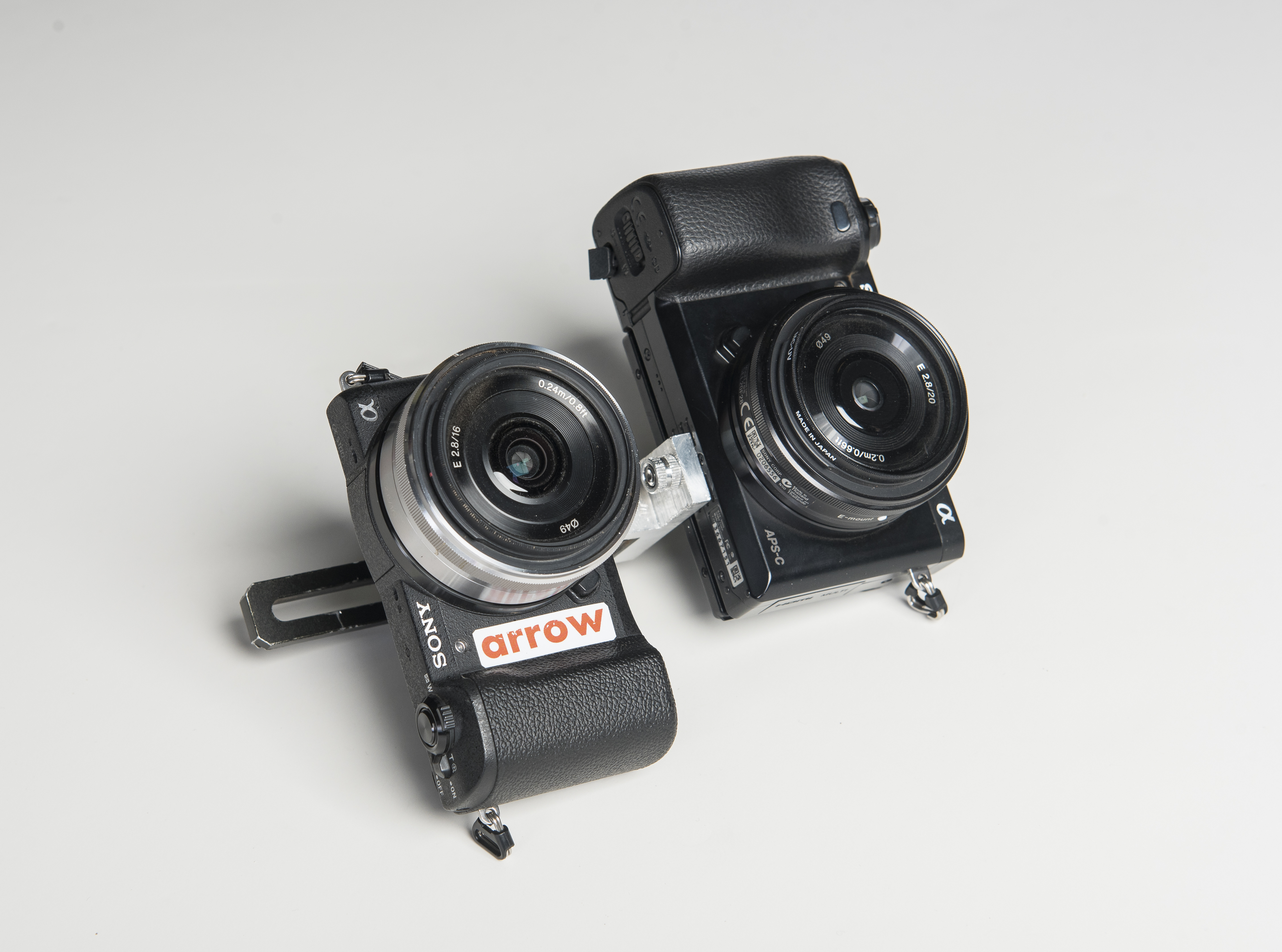

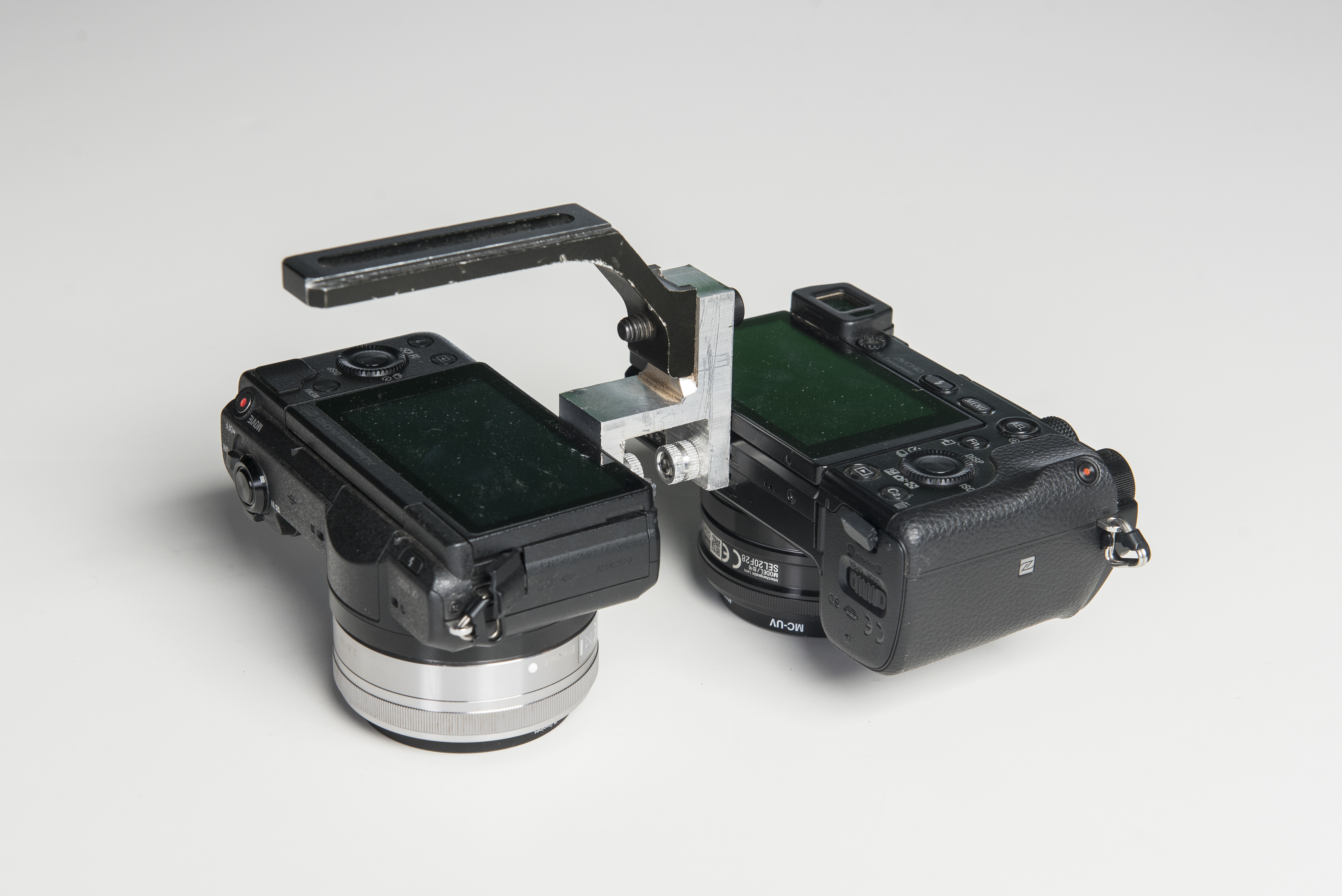

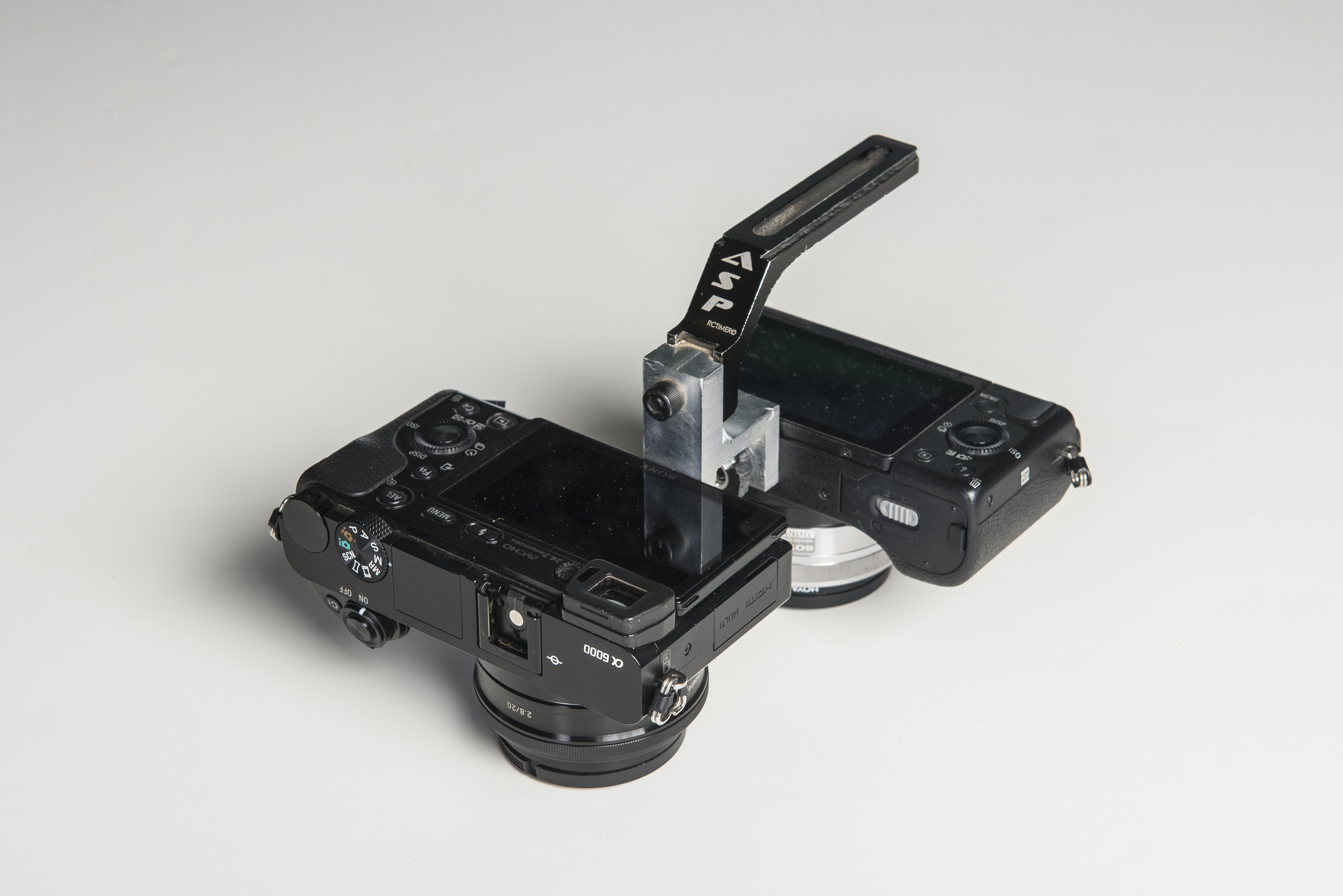

This dual mount enables the use of a NIR-converted A5100 and a standard RGB A6000. This allows simultaneous collection of NIR and RGB bands at high spatial resolution. The A6000 is also equipped with a hot shoe port, which enables the use of Micro Aerial Project’s V-map, a direct geopositioning system. Each sensor can be equipped with a variety of lenses, but most sUAS missions will require a prime lens will range focal length of 16mm to 20mm.
Additional information on the A6000 can be found on Sony’s website, https://www.sony.com/electronics/interchangeable-lens-cameras/ilce-6000-body-kit .
Additional information on the A5100 can be found on Sony’s website, https://www.sony.com/electronics/interchangeable-lens-cameras/ilce-5100-body-kit .
